8051 Prototyping Adapters for PLCC, QFP & SOIC

Call (315) 478-0722


Prototyping Adapters for 8051 multi-source devices are included on this page. Click on the blue part numbers below for photos and data sheets and to order our 8051 adapters. Note: These adapters are wired 1:1 and are useful for many devices.
8051 Prototyping Adapter

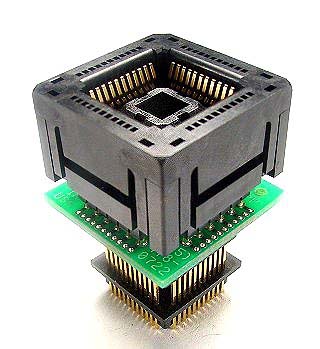

8051 PLCC Prototyping Adapters

These adapters are wired 1:1 and are useful for 8051 devices
which are available in PLCC.
  Part Numbers to Order
44 pin 8051 PLCC device PA44-PP Auto-eject test socket
PA44-PZP Lidded ZIF test socket

8051 Prototyping Adapter

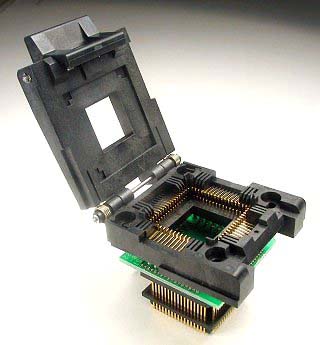

8051 PLCC Prototyping Adapters

These adapters are wired 1:1 and are useful for 8051 devices
which are available in PLCC.
  Part Numbers to Order
68 pin 8051 PLCC device PA68-PP Auto-eject test socket
PA68-PZP Lidded ZIF test

8051 Prototyping Adapter

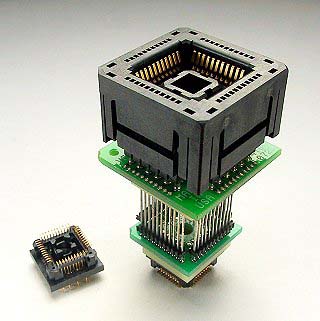

8051 PLCC / QFP Prototyping Adapters

These adapters are wired 1:1 and are useful for 8051 devices
which are available in both PLCC and QFP.
  Part Numbers to Order
44 pin 8051 (T)QFP device

PA44-PA-QF Auto-eject test socket
PA44-PP-QF Production socket
PA44-PA-QF Lidded test socket

PQF-44 Extra 44 pin QFP solder-down plug.


8051 SOIC Prototyping Adapter for 300 mil wide devices
8051 SOIC Prototyping Adapters

These adapters are wired 1:1 and are useful for 8051 devices
which are available in both SOIC and DIP.

Part Numbers to Order
Pins
SOIC / SOIC
Prototyping Adapters
Extra SOIC Plug
Six-Packs
24
PA-SOD-2808-D420-24/2 PA-SOF-D420-24/6
28
PA-SOD-2808-D420-28/2 PA-SOF-D420-28/6
