SOIC Programming Adapters
SOIC to DIP SMT Adapters

Call Logical Systems at (315) 478-0722

SOIC to DIP Adapters for 150 mil - 520 mil device widths and 8 - 44 pins

These SOIC to DIP programming adapters and SMT adapters wired 1:1. Many more are available. If you need a different wiring use the device part number search at the top of this page or look under Adapters - Manufacturers in the menu above. Click on the blue part numbers below for photos, data sheets and to order adapters.

SOIC Programming Adapters for 150 mil devices
SOIC to DIP SMT Adapters for 150 mil devices

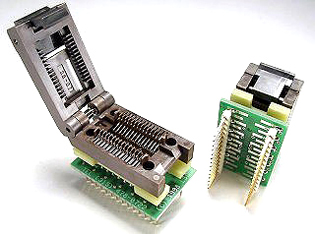

SOIC Programming Adapter

Part Numbers to Order
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
8
PA8SO1-03-3 PA8SO1-03-6
14
 PA14SO1-03-3 PA14SO1-03-6
16
 PA16SO1-03-3 PA16SO1-03-6

Part numbers to order
Pins
Adapter with
300 mil span DIP plug
8
 PA-SOD3SM18-08
14
 PA-SOD3SM18-14
16
 PA-SOD3SM18-16
SOIC Programming Adapters for 210 mil devices
SOIC to DIP SMT Adapters for 210 mil devices
SOIC Programming Adapter

Part Numbers to Order
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
8
PA8SO1-2006-3 PA8SO1-2006-6
14
 PA14SO1-2006-3 PA14SO1-2006-6
16
 PA16SO1-2006-3 PA16SO1-2006-6
18
 PA18SO1-2006-3 PA18SO1-2006-6
20
 PA20SO1-2006-3 PA20SO1-2006-6

Part numbers to order
Pins
Adapter with 300
mil span DIP plug
8
 PA-SOD3SM18-08
14
 PA-SOD3SM18-14
16
 PA-SOD3SM18-16
18
 PA-SOD3SM18-18
20
 PA-SOD3SM18-20
SOIC Programming Adapters for 300 mil devices
SOIC to DIP SMT Adapters for 300 mil devices
SOIC Programming Adapter

Part Numbers to Order
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
14
PA14SO1-08H-3 PA14SO1-08H-6
16
 PA16SO1-08H-3 PA16SO1-08H-6
18
 PA18SO1-08H-3 PA18SO1-08H-6
20
 PA20SO1-08H-3 PA20SO1-08H-6
24
 PA24SO1-08H-3 PA24SO1-08H-6
28
 PA28SO1-08-3 PA28SO1-08-6

Part numbers to order
Pins
Adapter with 300 mil span DIP plug
Adapter with 600 mil span DIP plug
14
 PA-SOD3SM18-14 n/a
16
 PA-SOD3SM18-16 n/a
18
 PA-SOD3SM18-18 n/a
20
 PA-SOD3SM18-20 n/a
24
 PA-SOD3SM18-24 PA-SOD6SM18-24
28
 PA-SOD3SM18-28 PA-SOD6SM18-28
SOIC Programming Adapters for 350 mil devices
SOIC to DIP SMT Adapters for 350 mil devices
SOIC Programming Adapter

Part Numbers to Order
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
28
PA28SO1-15B-3 PA28SO1-15B-6

Part numbers to order
Pins
Adapter with 300
mil span DIP plug
Adapter with 600 mil span DIP plug
28
 PA-SOD3SM18-28 PA-SOD6SM18-28
SOIC Programming Adapters for 450 mil devices
SOIC to DIP SMT Adapters for 450 mil devices
SOIC Programming Adapter

Part Numbers to Order
Pins
Adapter with
600 mil span DIP plug
32
PA32SO1-OT
40
 PA40SO1-OT

Part numbers to order
Pins
Adapter with
600 mil span DIP plug
32
 PA-SOD6SM18-32
40
 PA-SOD6SM18-40
SOIC Programming Adapters for 520 mil devices
SOIC to DIP SMT Adapters for 520 mil devices

Part Numbers to Order
Pins
Adapter with
600 mil DIP plug
44
PA44SO1-OT

Part numbers to order
Pins
Adapter with
600 mil span DIP plug
44
 PA-SOD6SM18-44
SOIC Programming Considerations
Notes about SOIC Socket Dimensions & Footprints
Some SOIC devices are available in more than one body width. For example, 8 pin SOIC devices are sometimes available in body widths of 150 and 210 mil. Socket dimensions are included on our adapter data sheets, accessible from the searches or ordering table on this page. For comparative dimensions of the entire range of SOIC sockets go to our .pdf catalog pages. Page 10 is a device-to-socket table and page 11 is a socket-to-adapter table.Our adapters are modular and the sockets are replaceable but not interchangeable.
300 mil plug 300 mil (-3)
600 mil plug 600 mil (-6)
 Most SOIC programming adapters offer a choice of 300 mil or 600 mil DIP plugs. We recommend the 600 mil be used whenever possible as it is more stable. A "- 3" or "- 6" on the end of the adapter part number is the indicator.
