SOIC Programming Adapters

Call (315) 478-0722
SOIC to DIP Adapters for 150 mil - 520 mil device widths 8 - 44 pins

The following charts show only SOIC to DIP programming adapters wired 1:1. Many more are available. If you need a different wiring or are not sure use the device part number search at the top of this page or look under Adapters - Manufacturers in the menu above. Click on the blue part numbers below for photos, data sheets and to order our adapters.

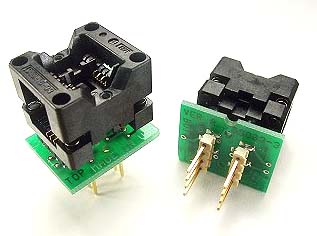

SOIC Programming Adapters for 150 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
150 mil
8
PA8SO1-03-3 PA8SO1-03-6
150 mil
14
 PA14SO1-03-3 PA14SO1-03-6
150 mil
16
 PA16SO1-03-3 PA16SO1-03-6

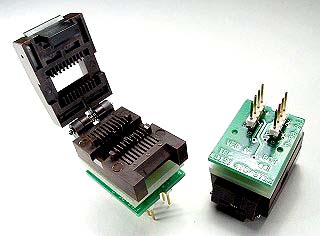

SOIC Programming Adapters for 210 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
210 mil
8
PA8SO1-2006-3 PA8SO1-2006-6
200 mil
14
 PA14SO1-2006-3 PA14SO1-2006-6
200 mil
16
 PA16SO1-2006-3 PA16SO1-2006-6
200 mil
18
 PA18SO1-2006-3 PA18SO1-2006-6
200 mil
20
 PA20SO1-2006-3 PA20SO1-2006-6
SOIC Programming Adapters for 291 mil devices

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
300 mil
20
 PA20-SO-652D-3 PA20-SO-652D-6
300 mil
24
 PA24-SO-652D-3 PA24-SO-652D-6
300 mil
28
 PA28-SO-652D-3 PA28-SO-652D-6
300 mil
32
 PA32-SO-652D-3 PA32-SO-652D-6
SOIC Programming Adapters for 300 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
300 mil
14
PA14SO1-08H-3 PA14SO1-08H-6
300 mil
16
 PA16SO1-08H-3 PA16SO1-08H-6
300 mil
18
 PA18SO1-08H-3 PA18SO1-08H-6
300 mil
20
 PA20SO1-08H-3 PA20SO1-08H-6
300 mil
24
 PA24SO1-08H-3 PA24SO1-08H-6
300 mil
28
 PA28SO1-08-3 PA28SO1-08-6
SOIC Programming Adapters for 330 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
330 mil
14
 PA14SO1-06H-3 PA14SO1-06H-6
330 mil
16
 PA16SO1-06H-3 PA16SO1-06H-6
330 mil
18
 PA18SO1-06H-3 PA18SO1-06H-6
330 mil
20
 PA20SO1-06H-3 PA20SO1-06H-6
330 mil
24
 PA24SO1-06H-3 PA24SO1-06H-6
330 mil
28
 PA28SO1-06-3 PA28SO1-06-6
SOIC Programming Adapters for 350 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
300 mil DIP plug
Adapter with
600 mil DIP plug
350 mil
28
PA28SO1-15B-3 PA28SO1-15B-6
SOIC Programming Adapters for 450 mil devices
SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
Adapter with
600 mil DIP plug
450 mil
32
PA32SO1-OT
450 mil
40
 PA40SO1-OT

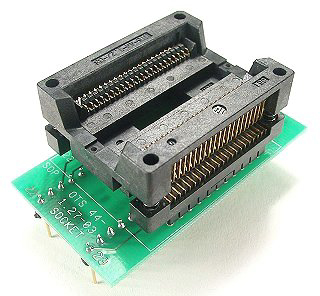

SOIC Programming Adapters for 520 mil devices

Part Numbers to Order
Body Width
Pins
Adapter with 600 mil DIP plug
520 mil
44
PA44SO1-OT
SOIC Programming Considerations
Notes about SOIC Socket Dimensions & Footprints
Some SOIC devices are available in more than one body width. For example, 8 pin SOIC devices are sometimes available in body widths of 150 and 210 mil. Socket dimensions are included on our adapter data sheets, accessible from the searches or ordering table on this page. For comparative dimensions of the entire range of SOIC sockets go to our .pdf catalog pages. Page 10 is a device-to-socket table and page 11 is a socket-to-adapter table.Our adapters are modular and the sockets are replaceable but not interchangeable.
300 mil plug 300 mil (-3)
600 mil plug 600 mil (-6)
 Most SOIC programming adapters offer a choice of 300 mil or 600 mil DIP plugs. We recommend the 600 mil be used whenever possible as it is more stable. A "- 3" or "- 6" on the end of the adapter part number is the indicator.
