SMT Headers - SMD Headers

Call Logical Systems at (315) 478-0722
These items cannot be ordered online. Please call or email.

8 - 44 pins for 150 mil - 520 mil SOIC device widths

Solder down to an SOIC land pattern. Pins are curved to elevate the header on all widths except for 150 mil devies. Lead time is stock to 6 weeks.

Pitch: 0.050"

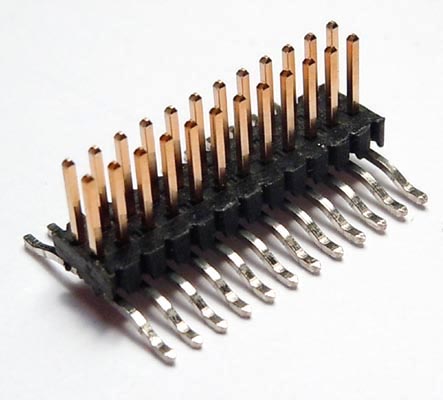

SOIC Header

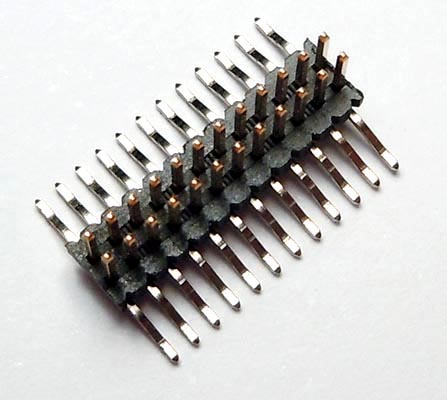

SOIC Header

Part number format = PA-SOF-Dwww-pp/1

www= plug width
pp= pin count

Click here for a .pdf of dimensional drawings.

These items cannot be ordered online. Minimum order 100 pieces.
For smaller quantities available in 6-packs click here.

Part Numbers
SOIC Headers for 150 mil devices
SOIC Headers for 200 - 210 mil devices
SOIC Headers for 300 mil devices
Pins
Part Numbers to Order

Pins
Part Numbers to Order

Pins
Part Numbers to Order
8
PA-SOF-D250-08/1
8
PA-SOF-D310-08/1
14
 PA-SOF-D420-14/1
14
 PA-SOF-D250-14/1
14
 PA-SOF-D310-14/1
16
 PA-SOF-D420-16/1
16
 PA-SOF-D250-16/1
16
 PA-SOF-D310-16/1
18
 PA-SOF-D420-18/1

18

20
 PA-SOF-D420-20/1

20

24
 PA-SOF-D420-24/1

28
 PA-SOF-D420-28/1
SOIC Headers for 330 - 350 mil devices

SOIC Headers for 450 mil devices
SOIC Headers for 520 mil devices
Pins
Part Numbers to Order

Pins
Part Numbers to Order

Pins
Part Numbers to Order
14
 PA-SOF-D470-14/1
32
 PA-SOF-D560-32/1
32
 PA-SOF-D630-32/1
16
 PA-SOF-D470-16/1
40
 PA-SOF-D560-40/1
40
 PA-SOF-D630-40/1
18
 PA-SOF-D470-18/1
44
 PA-SOF-D630-44/1
20
 PA-SOF-D470-20/1
24
 PA-SOF-D470-24/1
28
 PA-SOF-D470-28/1
Pricing

Part Numbers
Pins
Quantity Pricing
    100 200 500 1000
PA-SOF-Dxxx-8/1 8 2.93 2.76 2.42 2.24
PA-SOF-Dxxx-14/1 14 3.70 3.48 3.05 2.83
PA-SOF-Dxxx-16/1 16 3.95 3.72 3.26 3.02
PA-SOF-Dxxx-18/1 18 4.21 3.96 3.47 3.22
PA-SOF-Dxxx-20/1 20 4.46 4.20 3.68 3.41
PA-SOF-Dxxx-24/1 24 4.97 4.68 4.10 3.80
PA-SOF-Dxxx-28/1 28 5.48 5.16 4.52 4.19
PA-SOF-Dxxx-32/1 32 5.99 5.64 4.94 4.58
PA-SOF-Dxxx-40/1 40 7.01 6.60 5.78 5.36
PA-SOF-Dxxx-44/1 44 7.52 7.08 6.20 5.75
