QFP Prototyping Adapters, TQFP Prototyping Adapters

Call Logical Systems at (315) 478-0722


The following charts show only PQFP and TQFP adapters wired 1:1. Many more are available. If you need a different wiring or are not sure use the device part number search above or look under Adapters - Manufacturers in the menu above. Click on the blue part numbers below for photos and data sheets or to order our QFP adapters.

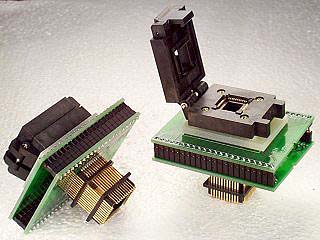

QFP to QFP Prototyping Adapters (shown with extra solder-down plug)

Part Numbers to Order
Pins
Wiring
Test Socket
Adapter with detatchable QFP plug
32
1:1 by signal (classic)
-1498
PA32Q-32QF
44
1:1 by signal (classic)
-03
PA44QF03-44QF
44
1:1 by signal (classic)
-14C
PA44QF14C-44QF
44
1:1 by signal (classic)
-16
PA44QF16-44QF
0 Extra 32 pin QFP
solder-down foot. PQF-32
0 Extra 44 pin QFP
solder-down foot. PQF-44

QFP to PLCC Prototyping Adapters
QFP Prototyping Adapter

Part Numbers to Order
Pins
Wiring
Test Socket
Adapter with PLCC plug
44
1:1 by signal (classic)
-03
PA44-QP-03
44
1:1 by signal (classic)
-14C
PA44-QP-14C
44
1:1 by signal (classic)
-16
PA44-QP-16
