The following charts show only PQFP programming adapters and TQFP programming adapters wired 1:1. Many more are available. If you need a different wiring or are not sure use the device part number search above or look under Adapters - manufacturers in the menu above. Click on the blue part numbers below for photos and data sheets or to order our QFP adapters.

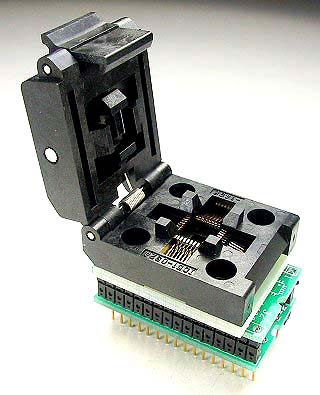

QFP Programming Adapter - 32 pin
QFP Programming Adapter 32 pin
Device
Dimensions
Socket Mfgr
Part Number
Logical Systems Programming
Adapter Part Number to Order
32 pin
7.0 mm body
0.8 mm pitch
8.0 mm knee
9.0 mm tip 		Yamaichi Part Number
IC51-0324-1498 		PA32Q-1498
Wired 1:1 by signal.
32 pin
7.0 mm body
0.8 mm pitch
8.0 mm knee
9.0 mm tip 		Yamaichi Part Number
IC51-0324-1498 		PA32Q-1498-1
Wired 1:1 by pin number.

QFP Programming Adapters - 44 pin

There are three different sockets choices available for 44 pin PQFP and TQFP adapters. It is necessary to know which package you have before ordering. Check the manufacturer's data sheet for device dimensions. In most cases there are recommendations in our data sheets and in the cross-reference database accessible from the searches at the top of this page.

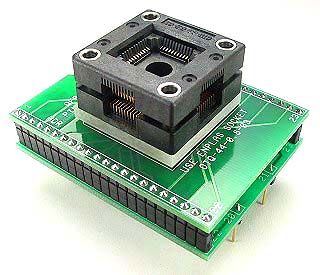

TQFP Programming Adapter
Device
Dimensions
Socket Mfgr
Part Number
Logical Systems Programming
Adapter Part Number to Order
44 pin
10.0 mm body
0.8 mm pitch
11.0 - 11.3 mm knee
12 - 12.8 mm tip 		Enplas Part Number
OTQ-44-0.8-03 		PA44Q-03
Wired 1:1 with DIP pin 1 to QFP pin 39 (middle of top).
44 pin
10.0 mm body
0.8 mm pitch
11.0 - 11.3 mm knee
12 - 12.8 mm tip 		Enplas Part Number
OTQ-44-0.8-03 		PA44Q-1-03
Wired 1:1 with DIP pin 1 to QFP pin 1.

QFP Programming Adapter
Device
Dimensions
Socket Mfgr
Part Number
Logical Systems Programming
Adapter Part Number to Order
44 pin
10.0 mm body
0.8 mm pitch
12.8 mm knee
13.9 mm tip  		 Enplas Part Number
FPQ-44-0.8-14C		 PA44Q-14C
Wired 1:1 with DIP pin 1 to QFP pin 39 (middle of top).
44 pin
10.0 mm body
0.8 mm pitch
12.8 mm knee
13.9 mm tip  		 Enplas Part Number
FPQ-44-0.8-14C		 PA44Q-1-14C
Wired 1:1 with DIP pin 1 to QFP pin 1.

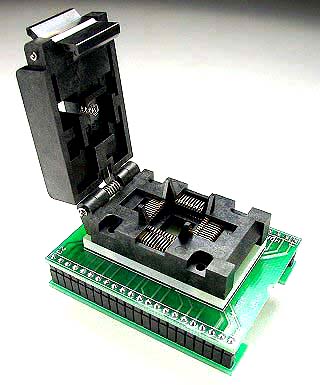

QFP Programming Adapter
Device
Dimensions
Socket Mfgr
Part Number
Logical Systems Programming
Adapter Part Number to Order
44 pin
10.0 mm body
0.8 mm pitch
11.6 mm knee
13.2 mm tip 		Enplas Part Number
OTQ-44-0.8-16A		 PA44Q-16
Wired 1:1 with DIP pin 1 to QFP pin 39 (middle of top).
44 pin
10.0 mm body
0.8 mm pitch
11.6 mm knee
13.2 mm tip 		Enplas Part Number
OTQ-44-0.8-16A		 PA44Q-1-16
Wired 1:1 with DIP pin 1 to QFP pin 1.
