PLCC Prototyping Adapters
Also PLCC to QFP Prototyping Adapters

Call Logical Systems at (315) 478-0722

The following charts show only PLCC/PLCC and PLCC/QFP prototyping adapters wired 1:1. Many more are available. If you need a different wiring or are not sure use the device part number search above or look under Adapters in the menu above. Click on the blue part numbers below for photos and data sheets or to purchase our PLCC adapters. PLCC sockets are available in Auto-eject or Lidded ZIF styles.
PLCC / PLCC Prototyping Adapters
Available with auto-eject or lidded test sockets

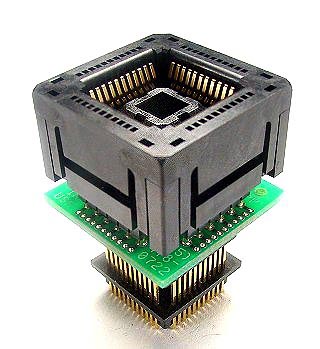

PLCC Prototyping Adapter

Part Numbers to Order

Auto-eject test socket
PLCC plug
Lidded ZIF test socket
PLCC plug
28 pin
 PA28-PP PA28-PZP
32 pin
 PA32-PP PA32-PZP
44 pin
 PA44-PP PA44-PZP
52 pin
 PA52-PP PA52-PZP
68 pin
 PA68-PP PA68-PZP
84 pin
 PA84-PP PA84-PZP
PLCC / QFP Prototyping Adapters
Available with production sockets, auto-eject rest sockets or lidded test sockets

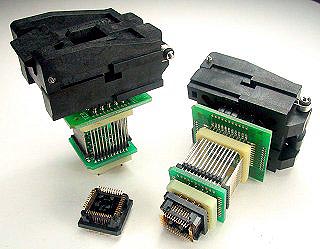

PLCC to QFP Prototyping Adapter

Part Numbers to Order

Production socket
QFP plug
Auto-eject test socket
QFP plug
Lidded ZIF test socket
QFP plug
44 pin
 PA44-PP-QF PA44-PA-QF PA44-PZ-QF
      Extra 44 pin QFP
solder-down foot. PQF-44
