PLCC Emulator Adapters

Call Logical Systems at (315) 478-0722

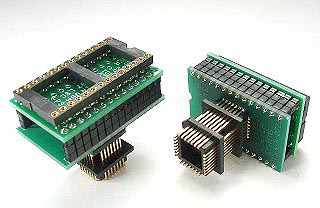

PLCC Emulator adapters provide a DIP socket on the top and plug into a PLCC production socket. We offer both generic 1:1 wired adapters and device specific adapters. This page includes the most popular emulator adapters, use the searches above to find adapters not listed. Click on Adapters in the menu above to search by device manufacturer. Click on the blue part numbers below for photos and data sheets or to order our adapters. Most of our emulator adapters offer a choice of Aries DIP ZIF socket or open-frame socket. Our PLCC plugs are supplied in a standard height of 21.6mm. They are available in 29.2mm by request. If clearance is still an issue let us know and we'll work with you. Test points are available upon request.

DIP / PLCC Emulator Adapters wired 1:1

			Part Numbers to Order
Socket Pins	Plug Pins	Wiring	Open-frame socket	Aries DIP ZIF socket
28	28	1:1	PA28-28-DP-PP	PA28-28-DP
32	32	1:1	PA32-32-DP-PP	PA32-32-DP
44	44	1:1	PA44-DP-PP	PA44-DP

DIP / PLCC Emulator Adapters for 28-44 pin memory & logic devices

			Part Numbers to Order
Socket Pins	Plug Pins	Wiring	Open-frame socket	Aries DIP ZIF socket
24	28	5, 8, 11, 19 skipped	PA24-28-1DP-PP	PA24-28-1DP
24	28	1, 8, 15, 22 skipped	PA24-28-2DP-PP	PA24-28-2DP
24	28	5. 10. 21. 22 skipped	PA24-28-3DP-PP	PA24-28-3DP
24	28	1. 10. 15. 21 skipped	PA24-28-5DP-PP	PA24-28-5DP
24	28	1, 11, 15, 19 skipped 28-1, 14-15 shorted	PA24-28-7DP-PP	PA24-28-7DP
28	32	1, 12, 17, 26 skipped for 2765-27512	PA28-32-DP-PP	PA28-32-DP
44	44	1, 13, 23, 33 skipped for 27C210-27C4096	PA280-DP-PP	PA280-DP

DIP / PLCC Emulator Adapters for 8051 family

			Part Numbers to Order
Target IC	Socket Pins	Plug Pins	Open-frame socket	Aries DIP ZIF socket
8051 family	40	44	PA51-DP-PP	PA51-DP

DIP / PLCC Emulator Adapters for Microchip PIC devices

			Part Numbers to Order
Target IC	Socket Pins	Plug Pins	Open-frame socket	Aries DIP ZIF socket
PIC17C42 & compatibles	40	44	PA17C42-DP-PP	PA17C42-DP
PIC16C64 & compatibles	40	44	PA40-44-P64-DP-PP	PA40-44-P64-DP

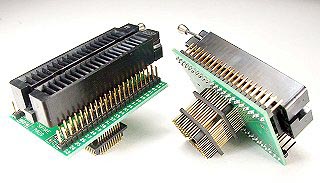

DIP / PLCC Emulator Adapters - user configurable (shown with optional ZIF socket)

			Part Numbers to Order
Target IC	Socket Pins	Plug Pins	Open-frame socket	Aries DIP ZIF socket
40 pin DIP to 44 pin PLCC	40	44	PA40-44-X-DP-PP	PA40-44-X-DZ-PP
