Programming Adapters for 8051 family Click on the blue part numbers below for photos and data sheets and to order our 8051 adapters. Use the menus and searches above to find our 8051 emulator adapters and 8051 prototyping adapters as well 8051 SMT to thru-hole adapters. We offer complete solutions for your 8051 project.

8051 Programming Adapters - 44 pin PLCC
8051 Programming Adapter
Package
Pins
Part Numbers to Order
PLCC
44
 PA51-44 Auto-eject test socket
PA51-44Z Lidded ZIF test socket
PA51PLD Production socket
This adapter works for the 8051 family including the 8748, 8749, 8751H, 87C51, 87C52, 87C528, 87C652, 87C654, AT89C51 and more.

8051 Programming Adapters - 68 pin PLCC
8051 Programming Adapter
Package
Pins
Part Numbers to Order
PLCC
68
 PA451-68 Auto-eject test socket
PA451-68Z Lidded ZIF test socket
This adapter programs the 87C451 in an 87C51 footprint.

8051 Programming Adapters - 44 pin QFP
8051 QFP Programming Adapter
Package
Pins
Part Numbers to Order
(T)QFP
44

PA51-QD-03 Open top test socket
PA51-QD-14C Lidded test socket
PA51-QD-16 Lidded test socket

See the data sheets help selecting the correct
PQFP or TQFP test socket or use the search at
the top of this page to find your device.

This adapter works for the 8051 family including the 8748, 8749, 8751H, 87C51, 87C52, 87C528, 87C652, 87C654, AT89C51 and more.

8051 Programming Adapters - SOIC
8051 SOIC Programming Adapter

Part Numbers to Order
Body Width
Pins
300 mil DIP plug
600 mil DIP plug
300 mil300 mil
24
 PA24SO1-08H-3 PA24SO1-08H-6
28
 PA28SO1-08-3 PA28SO1-08-6

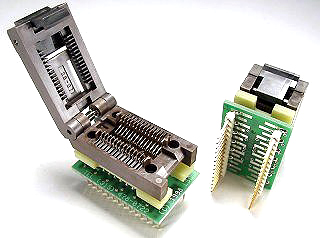

Various 8051 family devices are available in 24 or 28 pin, 300 mil wide SOIC packages. These adapters are wired 1:1 and are useful for programming a wide variety of SOIC 8051 devices. See more SOIC adapters.

8051 Programming Adapters - SSOP

Part Numbers to Order
Pins
300 mil DIP plug
600 mil DIP plug
16
 PA5111-16SS-3 PA5111-16SS-6
24
 PA5111-24SS-3 PA5111-24SS-6
These adapters are for the Atmel 87C5111 and programs in an Atmel spec'd footprint. See the data sheets for details. See our Atmel page for more adapters.
24
 PA24SS-OT-3 PA24SS-OT-6
Various 8051 family devices are available in 24 pin SSOP packages. This adapter is wired 1:1 and is useful for programming a variety of SSOP 8051 devices. See more SSOP adapters.

The following are sources of datasheets. Alldatasheet.com, Chipmanuals.com, Datasheetcatalog.com, Datasheetarchive.com, DataSheet4u.com, Getdatasheet.com

The following are primary sources of 8051 devices. Atmel, Intel, Philips.
