The following charts show only adapters wired 1:1. Many more are available. If you need a different wiring or are not sure use the device part number search at the top of the page or look under Adapters - manufacturers in the menu above to search by device manufacturer. Click on the blue part numbers below for photos, data sheets and to order our TSOP adapters.
TSOP Programming Adapters (wired 1:1 by signal unless indicated)

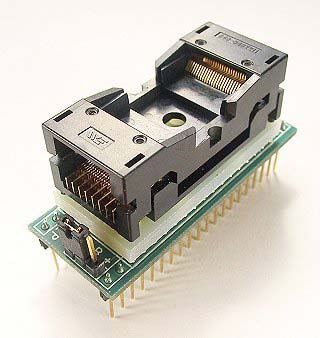

TSOP Programming Adapter

Part Numbers to Order
device body width
pins
Adapter with 600 mil DIP plug
11.8mm
28
 PA28TSOP3
14mm
32
 PA32TS14-OT
14mm
40
 PA40TS14-OT
20mm
32
PA32TS20-OT
20mm
40
 PA40TS20-OT
20mm
40 (1:1 by pin)
PA40TS20-1OT
20mm
48
 PA48TS20-OT
20mm
48 (1:1 by pin)
PA48TS20-1OT
TSOP Programming Considerations
Many TSOP flash memory devices are not available in a DIP package. Programming footprints may vary. Whenever possible our adapter data sheets and cross-references contain information on which programmers will work with our adapters. When selecting TSOP programming adapters it is necessary to know what wiring your device programmer is expecting to use.
