Surface Mount Adapters

SMT to Through-hole - Surface Mount Kits

Surface Mount Adapters Replace DIP devices with SMT. These SMT adapters provide a land pattern on the top and a DIP plug on the bottom. Prices given are for quantities of 1-10 pieces. For larger quantity pricing please call or email. Surface mount adapters are available panelized upon request. Packages Available: MSOP - PLCC - QFN - QFP - QSOP - SOIC - (T)SSOP - SOT - TSOP. Click on the blue part numbers below for photos and data sheets and to order our adapters. SMT device mounting services are available.

MSOP / DIP SMT to Through-hole Adapters

		Part numbers to order
Pins	Wiring	Adapter with 300 mil span DIP plug
8	1:1	PA-MSD3SM18-08
10	1:1	PA-MSD3SM18-10

PLCC / DIP SMT to Through-hole Adapter (for 8051)

			Part numbers to order
Target IC	Land Pattern Pins	Plug Pins	Adapter with 600 mil span DIP plug
8051 family	44	40	PA-PLL51-44

QFN / DIP SMT to Through-hole Adapter

		Part numbers to order
Pins	Wiring	Adapter with 600 mil span DIP plug
32	1:1 by signal (classic)	PA-QLD6SM18-32F-88

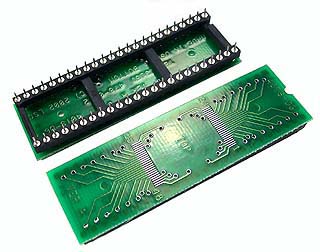

QFP / DIP SMT to Through-hole Adapters

		Part numbers to order
Pins	Wiring	Adapter with 600 mil span DIP plug
32	1:1 by signal (classic)	PA-QLD6SM18-32F-88
44	1:1 by signal (classic)	PA44QL8-D
44	1:1 by pin	PA44QL8-1D

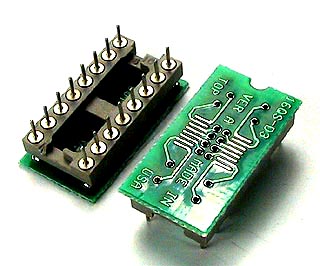

QSOP / DIP SMT to Through-hole Adapters

		Part numbers to order
pins	Wiring	Adapter with 600 mil span DIP plug
16	1:1	PA-QSD3SM18-16
20	1:1	PA-QSD3SM18-20
24	1:1	PA-QSD3SM18-24

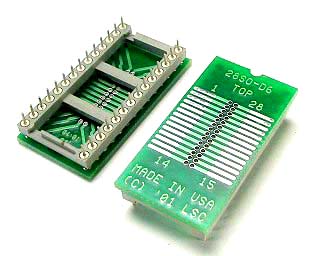

SOIC / DIP SMT to Through-hole Adapters

			Part numbers to order
Pins	SOIC Body Width	Wiring	Adapter with 300 mil span DIP plug	Adapter with 600 mil span DIP plug
8	150 - 300 mil	1:1	PA-SOD3SM18-08	n/a
14	150 - 300 mil	1:1	PA-SOD3SM18-14	n/a
16	150 - 300 mil	1:1	PA-SOD3SM18-16	n/a
18	200 - 300 mil	1:1	PA-SOD3SM18-18	n/a
20	200 - 300 mil	1:1	PA-SOD3SM18-20	n/a
24	300 - 350 mil	1:1	PA-SOD3SM18-24	PA-SOD6SM18-24
28	300 - 350 mil	1:1	PA-SOD3SM18-28	PA-SOD6SM18-28
32	450 mil	1:1	n/a	PA-SOD6SM18-32
40	450 mil	1:1	n/a	PA-SOD6SM18-40
44	520 mil	1:1	n/a	PA-SOD6SM18-44

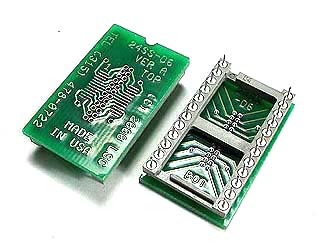

SSOP - TSSOP / DIP SMT to Through-hole Adapters

		Part numbers to order
Pins	Wiring	Adapter with 300 mil span DIP plug	Adapter with 600 mil span DIP plug
8	1:1	PA-SSD3SM18-08	n/a
14	1:1	PA-SSD3SM18-14	n/a
16	1:1	PA-SSD3SM18-16	n/a
18	1:1	PA-SSD3SM18-18	n/a
20	1:1	PA-SSD3SM18-20	n/a
24	1:1	PA-SSD3SM18-24	PA-SSD6SM18-24
28	1:1	PA-SSD3SM18-28	PA-SSD6SM18-28
32	1:1	n/a	PA-SSD6SM18-32
40	1:1	n/a	PA-SSD6SM18-40
44	1:1	n/a	PA-SSD6SM18-44

SOT / DIP SMT to Through-hole Adapters

		Part numbers to order
Pins	Wiring	Adapter with 300 mil span DIP plug
6	1:1	PA-SOTD3SM18-06

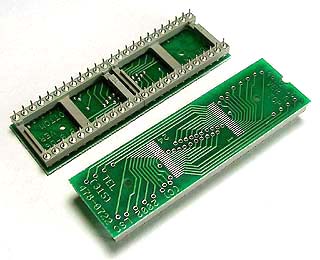

TSOP / DIP SMT to Through-hole Adapters

		Part numbers to order
pins	Wiring	Adapter with 600 mil span DIP plug
32	1:1	PA-TSD6SM18-32
40	1:1	PA-TSD6SM18-40
48	1:1	PA-TSD6SM18-48
