Emulator Adapters for PLCC & QFP

Call (315) 478-0722

An emulator adapter provides a DIP socket on the top and plugs into a PLCC production socket or solders down to a QFP land pattern. We offer both generic 1:1 wired adapters and device specific adapters.

This page includes the most popular emulator adapters, use the searches above to find adapters not listed. Click on Adapters in the menu above to search by device manufacturer. Click on the blue part numbers below for photos and data sheets or to order our adapters.

Most of our emulator adapters offer a choice of Aries DIP ZIF socket or open-frame socket. Our PLCC plugs are supplied in a standard height of 21.6mm. They are available in 29.2mm by request. If clearance is still an issue let us know and we'll work with you.

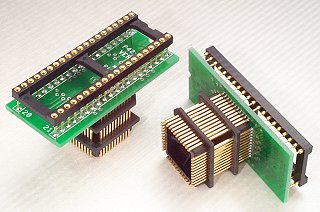

DIP / PLCC Emulator Adapters wired 1:1 (shown with optional ZIF socket)
Emulator Adapter

Part Numbers to Order
Socket
Pins
Plug
Pins
Wiring
Open-frame socket
Aries DIP ZIF socket
28
28
1:1
 PA28-28-DP-PP PA28-28-DP
32
32
1:1
 PA32-32-DP-PP PA32-32-DP
44
44
1:1
 PA44-DP-PP PA44-DP
DIP / PLCC Emulator Adapters for 28-44 pin memory & logic devices

Emulator Adapter

Part Numbers to Order
Socket
Pins
Plug
Pins
Wiring
Open-frame socket
Aries DIP ZIF socket
24
38
 5, 8, 11, 19 skipped PA24-28-1DP-PP PA24-28-1DP
24
28
 1, 8, 15, 22 skipped PA24-28-2DP-PP PA24-28-2DP
24
28
 5, 10, 21, 22 skipped PA24-28-3DP-PP PA24-28-3DP
24
28
 1, 10, 15, 21 skipped PA24-28-5DP-PP PA24-28-5DP
24
28
 1, 11, 15, 19 skipped
28-1, 14-15 shorted		 PA24-28-7DP-PP PA24-28-7DP
28
32
 1, 12, 17, 26 skipped
for 2765-27512		 PA28-32-DP-PP PA28-32-DP
44
44
 1, 13, 23, 33 skipped
for 27C210-27C4096		 PA280-DP-PP PA280-DP
DIP / PLCC Emulator Adapters for 8051 family (shown with optional ZIF socket)
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
8051 family
40
44
 PA51-DP-PP PA51-DP
DIP / PLCC Emulator Adapters for Microchip PIC devices
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
PIC17C42 & compatibles
40
44
 PA17C42-DP-PP PA17C42-DP
PIC16C64 & compatibles
40
44
 PA40-44-P64-DP-PP PA40-44-P64-DP

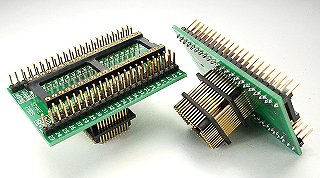

DIP / PLCC Emulator Adapters - user configurable
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
40 pin DIP to 44 pin PLCC
40
44
 PA40-44-X-DP-PP PA40-44-X-DZ-PP
DIP / QFP Emulator Adapters for 8051 family
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
8051 family
40
44
 PA51-DP-QF PA51-DZ-QF
Extra QFP solder-down foot     Extra QFP solder-down foot PQF-44
DIP / QFP Emulator Adapters for Microchip PIC devices
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
PIC16C64 & compatibles
40
44
 PA40-44-P64-DP-QF PA40-44-P64-DZ-QF
PIC17C42 & compatibles
40
44
 PA17C42-DP-QF PA17C42-DZ-QF
Extra QFP solder-down foot     Extra QFP solder-down foot PQF-44

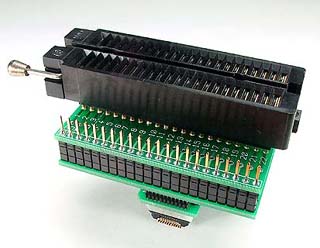

DIP / QFP Emulator Adapters - user configurable (shown with optional ZIF socket).
Emulator Adapter

Part Numbers to Order
Target IC
Socket
Pins
Plug
Pins
Open-frame socket
Aries DIP ZIF socket
40 pin DIP & 44 pin PLCC
40
44
 PA40-44-X-DP-QF PA40-44-X-DZ-QF
Extra QFP solder-down foot     Extra QFP solder-down foot PQF-44
