8051 Emulator Adapters

Call (315) 478-0722

Emulator Adapters for 8051 family multi-source devices are included on this page. Click on the blue part numbers below for photos and data sheets and to order our 8051 adapters.

	Part Numbers to Order

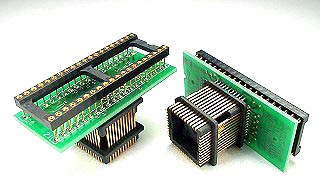

44 pin PLCC device	PA51-DP-PP PA51-DP (ZIF socket)

Part Numbers to Order

44 pin (T)QFP device

PA51-DP-QF
PA51-DZ-QF (ZIF socket)

PQF-44 Extra 44 pin QFP solder-down plug.

SOIC Emulator Adapters for 300 mil devices - Wired 1:1. Good for multi-source 8051 devices in 24 or 28 pins.

	Part Numbers to Order
Pins	Adapter with 300 mil wide DIP open frame socket or ZIF socket	Adapter with 600 mil wide DIP open frame socket or ZIF socket	Extra boards	Extra SOIC Plug Six-Packs
24	PA-DSO-2403-D420-24/2 PA-DSO-2403Z-D420-24/2	PA-DSO-2406-D420-24/2 PA-DSO-2406Z-D420-24/2	PA-DSO-2403 PA-DSO-2403Z PA-DSO-2406 PA-DSO-2406Z	PA-SOF-D420-24/6
28	PA-DSO-2803-D420-28/2 PA-DSO-2803Z-D420-28/2	PA-DSO-2806-D420-28/2 PA-DSO-2806Z-D420-28/2	PA-DSO-2803 PA-DSO-2803Z PA-DSO-2806 PA-DSO-2806Z	PA-SOF-D420-28/6
